What is S355JR Plates ?
S355JR steel plates are non-alloy, high-tensile structural steels conforming to EN 10025-2 standards, designed for load-bearing applications that demand strength and reliability . With a minimum yield strength of 355 MPa and excellent impact resistance at room temperature , these plates are ideal for general fabrication, construction, and machinery manufacturing. At Triton Alloys Inc., we supply and export S355JR plates in various thicknesses (6mm to 300mm) and custom dimensions to meet project-specific requirements. Our plates are ultrasonically tested, mill-certified, and fully traceable, ensuring consistent performance and compliance with global standards.
Why Choose Triton as Your S355JR Plates Supplier?
● Triton Alloys Inc. is a trusted and established name in the global steel industry, offering a premium range of S355JR High Tensile Steel Plates.
● Manufactured to exacting international standards like EN 10025-2, these plates deliver exceptional performance in a wide range of structural and engineering applications.
● We are proud to be one of the most reliable S355JR Plate suppliers in Mumbai, India, catering to both domestic and international clients across industries such as construction, shipbuilding, bridges, offshore structures, wind energy towers, and heavy machinery.
● Triton Alloys Inc. is a reputed manufacturer, stockist, and exporter of S355JR High Tensile Steel Plates, certified under EN 10025-2, serving industries globally.
Technical Specifications of S355JR Steel Plates (EN 10025-2)
| Item | S355JR - Offshore & Structural Steel Plate |
|---|---|
| Thickness | 5mm-150mm |
| Width | 1000mm-4500mm |
| Length | 3000mm-18000mm or as custom’s request |
| Material | En 10025-2 Steel Plate, S355JR Steel Plate |
| Technique | hot rolled |
| Standard | EN 10025-2:2004 |
S355JR Steel Plates Mechanical Properties
| Grade | Thickness (mm) | Min Yield (Mpa) | Tensile (Mpa) | Elongation (%) | Min Impact Energy | |
| S355JR | 8mm-100mm | 315-355 Mpa | 450-630 Mpa | 18-20% | 20 | 27J |
| 101mm-200mm | 285-295 Mpa | 450-600 Mpa | 18% | 20 | 27J | |
| 201mm-400mm | 275 Mpa | - | 17% | 20 | 27J | |
Applications of S355JR Steel Plates in India
- ● Bridges and Flyovers: Ideal for load-bearing structures requiring high tensile strength and impact resistance.
- ● Offshore and Marine Structures: Resistant to corrosion in wet and saline environments, perfect for shipbuilding, oil rigs, and wind platforms.
- ● Wind Turbine Towers: High impact strength and weldability make S355JR perfect for windmill foundations and tower structures.
- ● Heavy Equipment Manufacturing: Used in the production of cranes, mining machinery, and earthmoving vehicles.
- ● Construction of Industrial Buildings: Framework and support beams in factories, warehouses, and industrial sheds.
- ● General Fabrication: Used in custom steel fabrications, containers, and machinery parts due to easy machinability.
S355JR Equivalent Grades
| EN 10025-2 | Germany DIN 17100 | UNI | JIS | BS | ||
| S355JR | 1.0045 | St 52.3 | 1.0570 | Fe510D | SS490/SM490A | 50B |
S355JR Steel Plates Chemical Composition
| Grade | C | Mn | Si | P | S | N | Cu | CEV |
| S355JR | 0.24 max. | 1.6 max. | 0.55 max. | 0.04 max. | 0.04 max. | 0.012 max. | 0.55 max. | 0.47 max. |
Different Types of S355JR Steel Plates Available at Triton Alloys Inc.

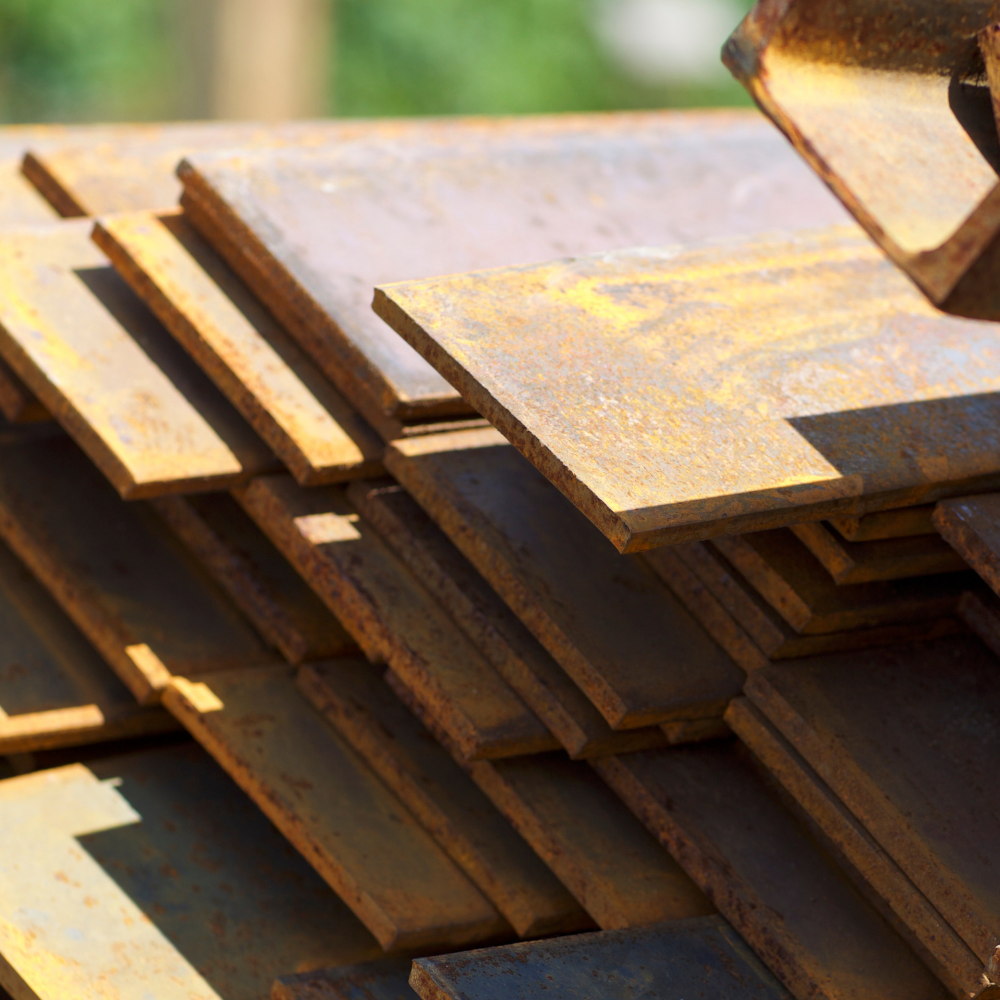

S355JR Steel Plates

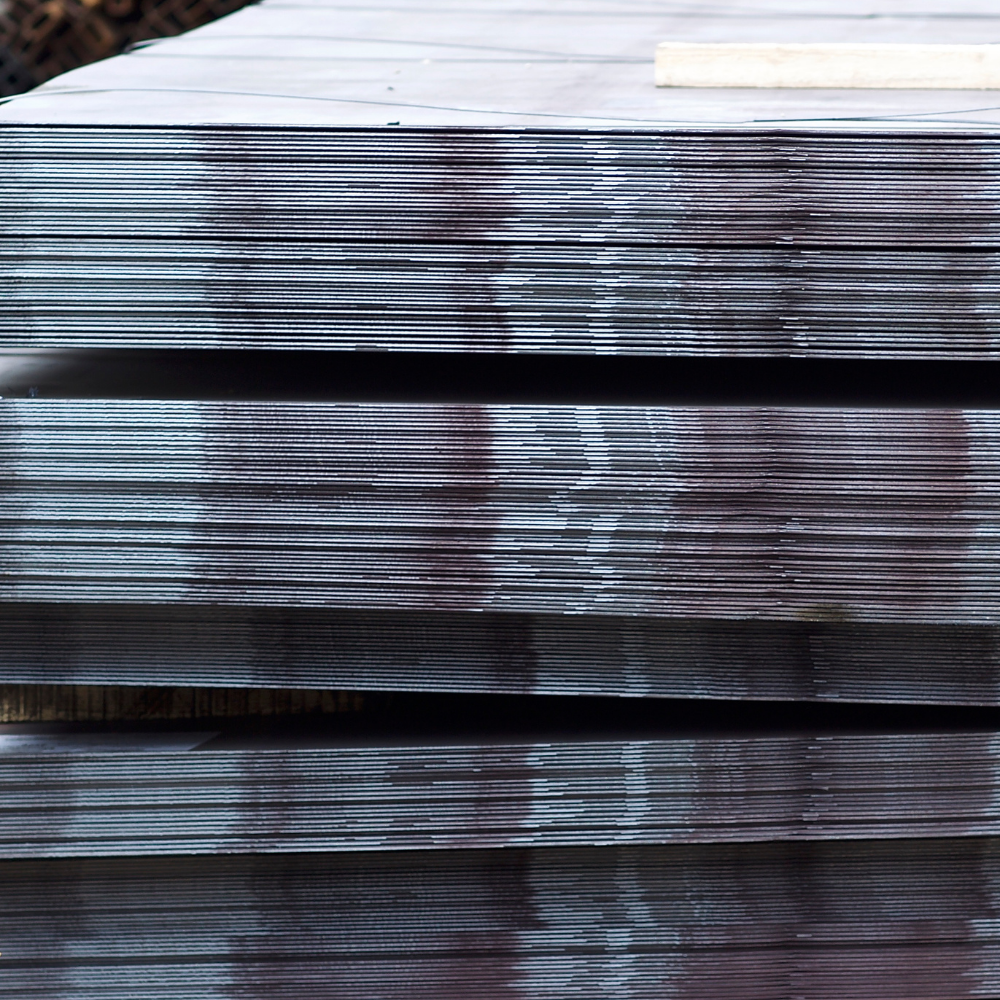

S355JR Carbon Steel Plates

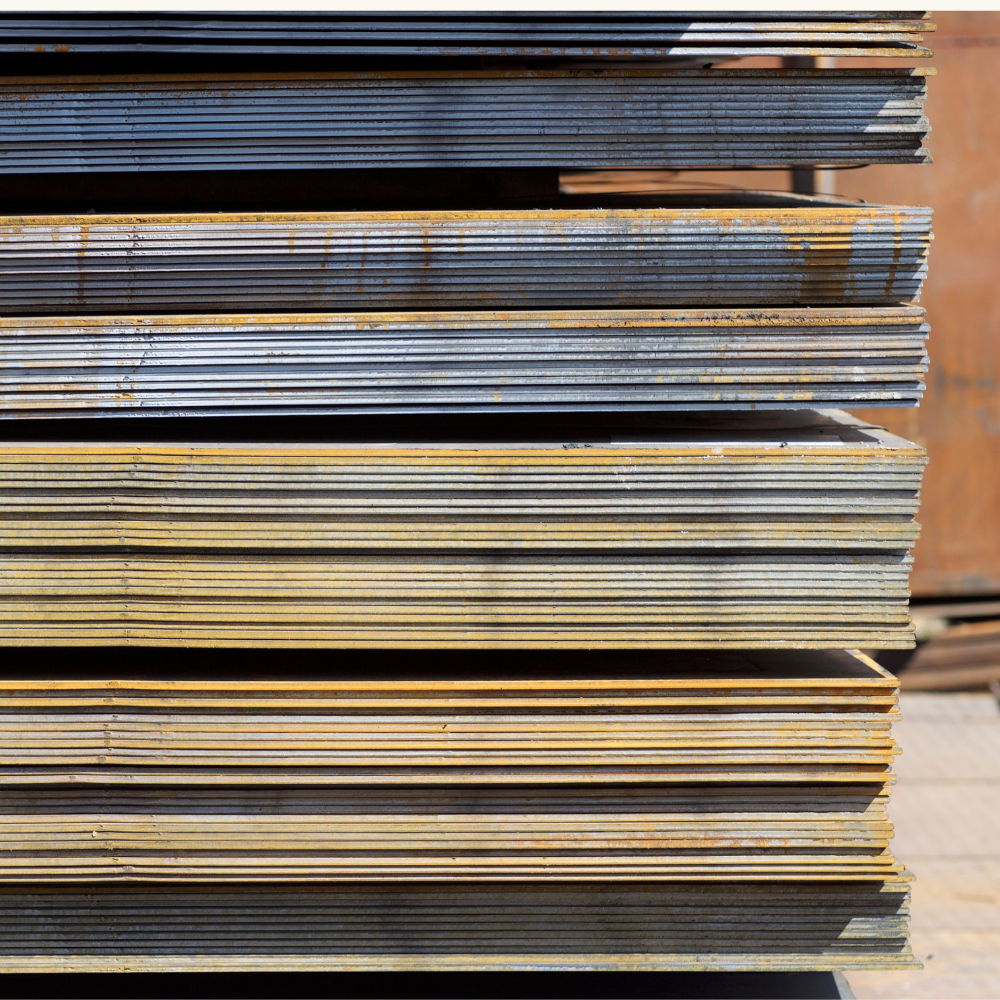

S355JR Plates

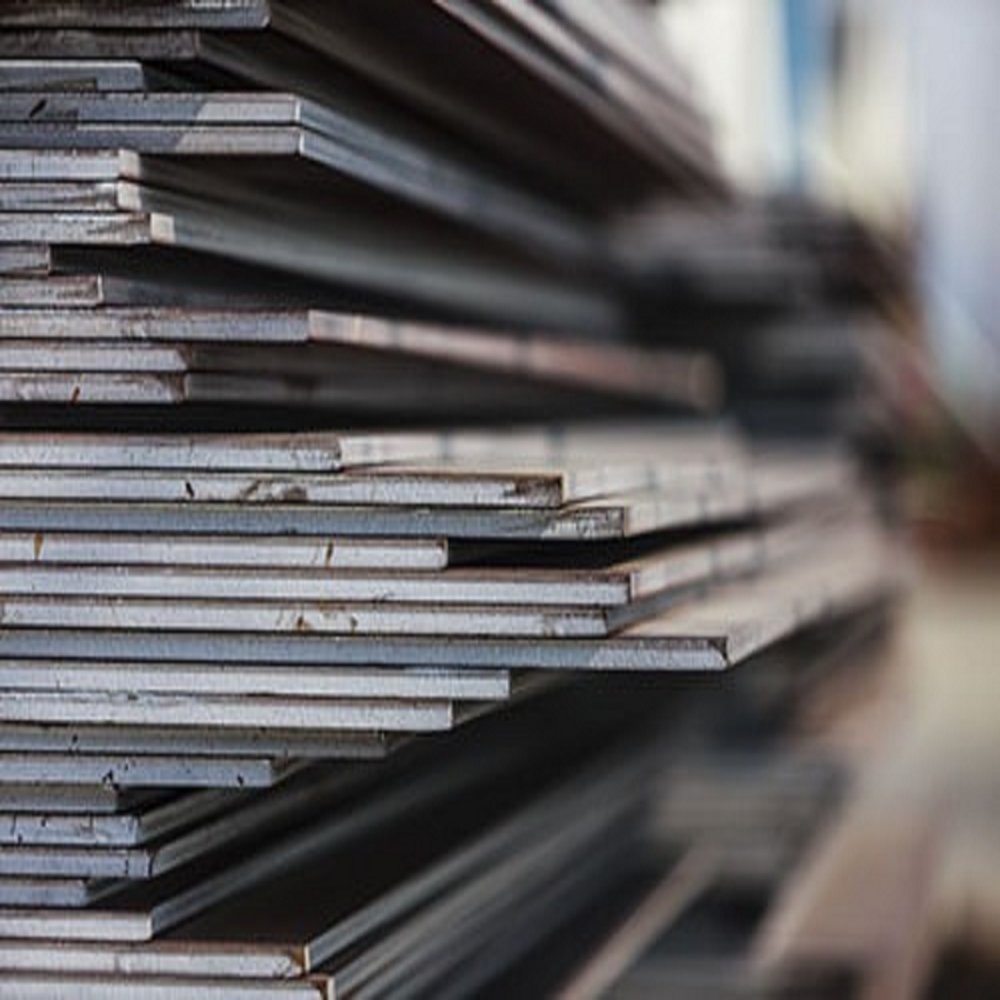

Structural Steel S355JR Plates

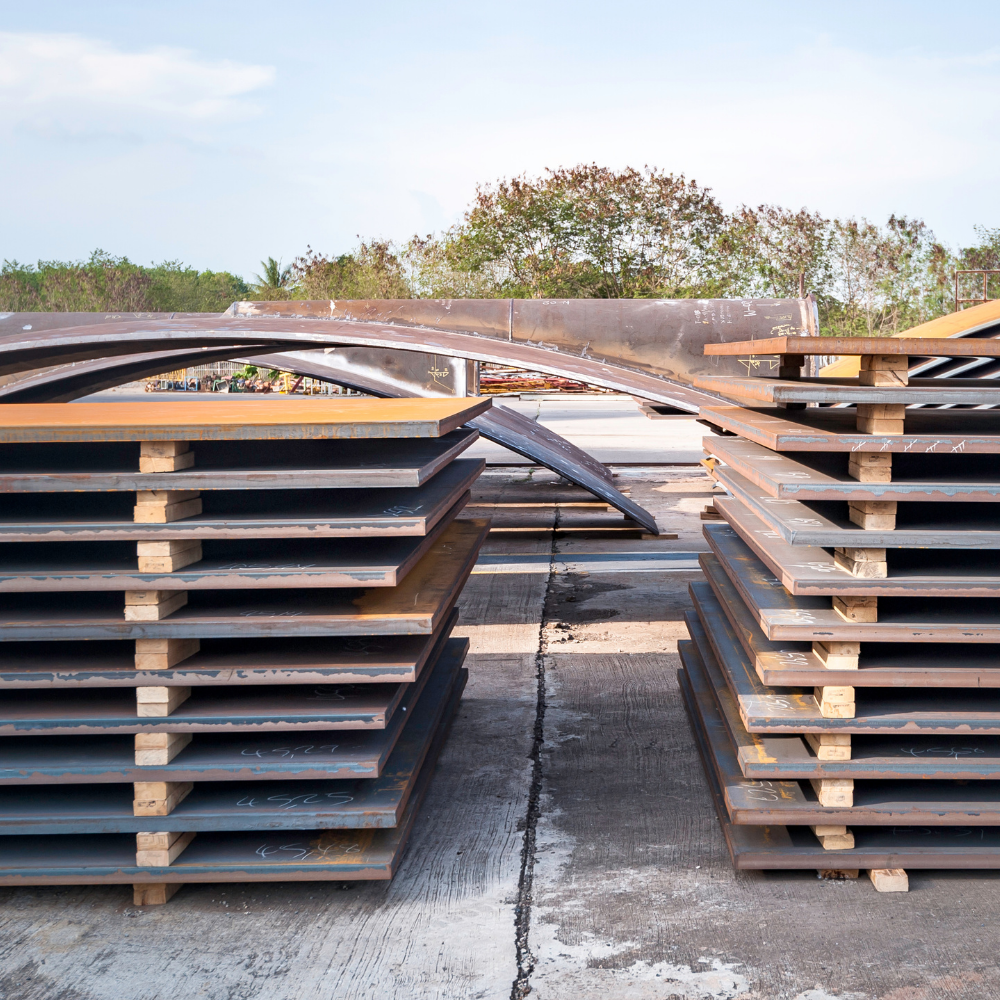

En 10025 S355JR Plates

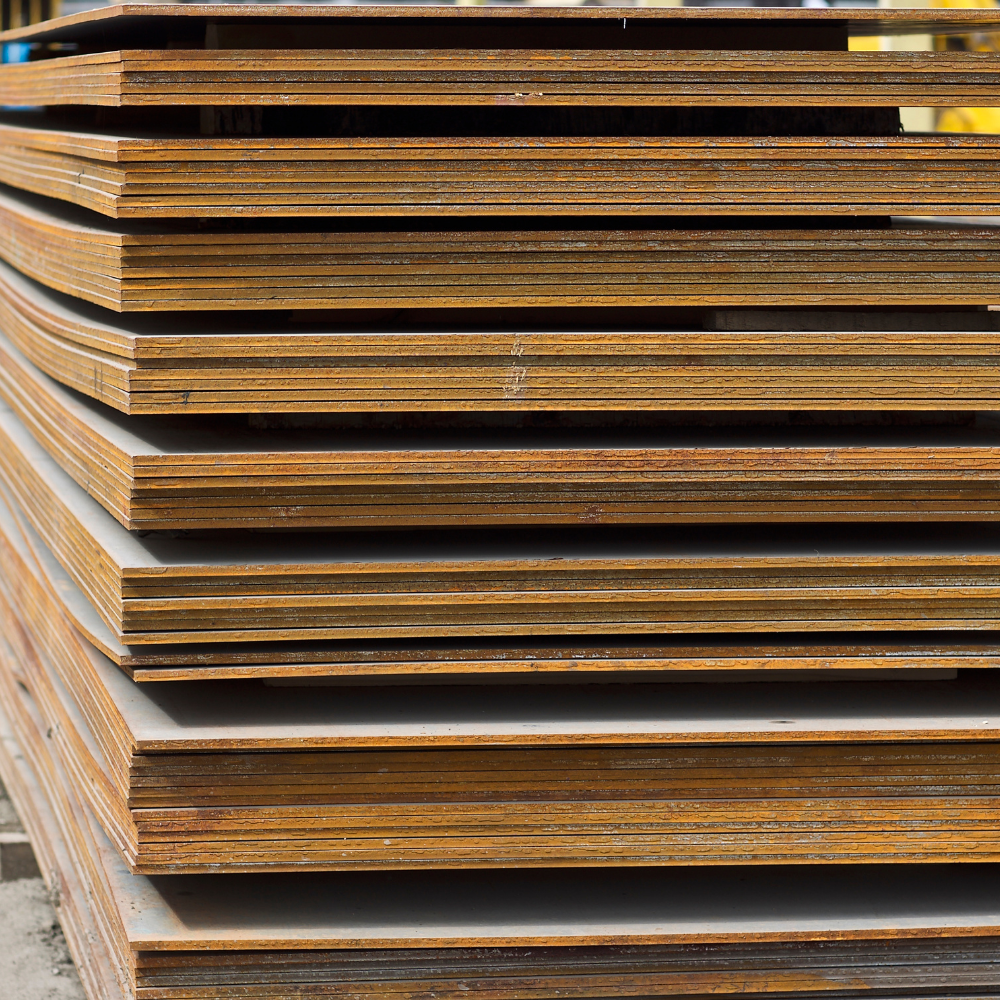

S355JR Structural Steel Plates
Latest Price List for S355JR Steel Plates – FOB Rates Per Metric Ton in India
| Product Description | FOB Price (US $ / Metric Ton) |
|---|---|
| S355JR High Strength Steel Plate | $800 - $3000 |
| Hot Rolled S355JR Steel Plates | $605 - $629 |
| S355JR Structural & Offshore Steel Plates | $800 - $4000 |
| S355JR Low Alloy High Strength Steel Plates | $500 - $800 |
| S355JR (1.0045) Steel Plates | $560 - $670 |
| EN 10025-2 S355JR Plates | $540 - $900 |
| S355JR Low Alloy Structural Steel Plates | $510 - $900 |
S355JR Structural Steel Plate Dimensions
| Thickness (mm) | Width (mm) | Length (mm) |
|---|---|---|
| 10 | 2000 | 6000 |
| 8 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 30 | 2000 | 6000 |
| 90 | 2500 | 6000 |
| 80 | 2500 | 6000 |
| 100 | 2500 | 6000 |
| 75 | 2500 | 6000 |
| 110 | 2500 | 6000 |
| 120 | 2500 | 6000 |
| 6 | 2500 | 12000 |
| 8 | 2500 | 12000 |
EN 10025 S355JR Plates Impact Testing Results
| EN 10025 S355JR Plates Impact Testing (KV - Impact Energy in Joules) | |||
|---|---|---|---|
| Test Direction | 0°C | -20°C | +20°C |
| Longitudinal | 27 | 27 | 27 |
| Minimum Elongation (%) for EN 10025 S355JR Plates | |||||
|---|---|---|---|---|---|
| Nominal Thickness (mm) | 1 – 1.5 | 2 – 2.5 | to 1 | 1.5 – 2 | 2.5 – 3 |
| A – Min. elongation Lo = 80 mm (%) parallel | 15 | 17 | 14 | 16 | 18 |
| Minimum Elongation (%) for Thicker EN 10025 S355JR Plates | |||||
|---|---|---|---|---|---|
| Nominal Thickness (mm) | 40 – 63 | Mar-40 | 100 – 150 | 63 – 100 | 150 – 250 |
| A – Min. elongation Lo = 5.65 √So (%) parallel | 21 | 22 | 18 | 20 | 17 |
S355JR Structural Steel Plate Weight Chart | Thickness, Size & Ton Calculations
| S355JR Structural Steel Plate Weight Chart | ||
|---|---|---|
| Specifications (mm) | Dimensions (mm) | Weight (Ton) |
| 10-22 × Real wide × True length | Set rolling | – |
| 8 | 1500-2000 × 8000-11000 | 10.754 T |
| 30 | 1500-2100 × 6450-8200 | 20.717 T |
| 25 | 1800-2500 × 5500-9800 | 12.885 T |
| 46 × Real wide × True length | Set rolling | – |
| 40 | 2140-2600 × 6600-9000 | 14.166 T |
| 52 | 2000-2500 × 8000-11400 | 19.458 T |
| 50 | 1850-2400 × 8500-12000 | 16.485 T |
| 55-65 × Real wide × True length | Set rolling | – |
| 74 | 1800-2250 × 7500-10000 | 20.159 T |
| 70 | 2100-2600 × 7500-9450 | 13.501 T |
| 85 | 1800-2400 × 8000-11500 | 21.159 T |
| 80 | 2100-2550 × 8600-12000 | 19.485 T |
| 96 | 1650-2300 × 7800-11600 | 22.459 T |
| 90 × Real wide × True length | Set rolling | – |
| 100 × Real wide × True length | Set rolling | – |
India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Qatar, Russia, Vietnam, South Africa, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago, Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
We Offer the Following Processing Services for S355JR Steel Plates

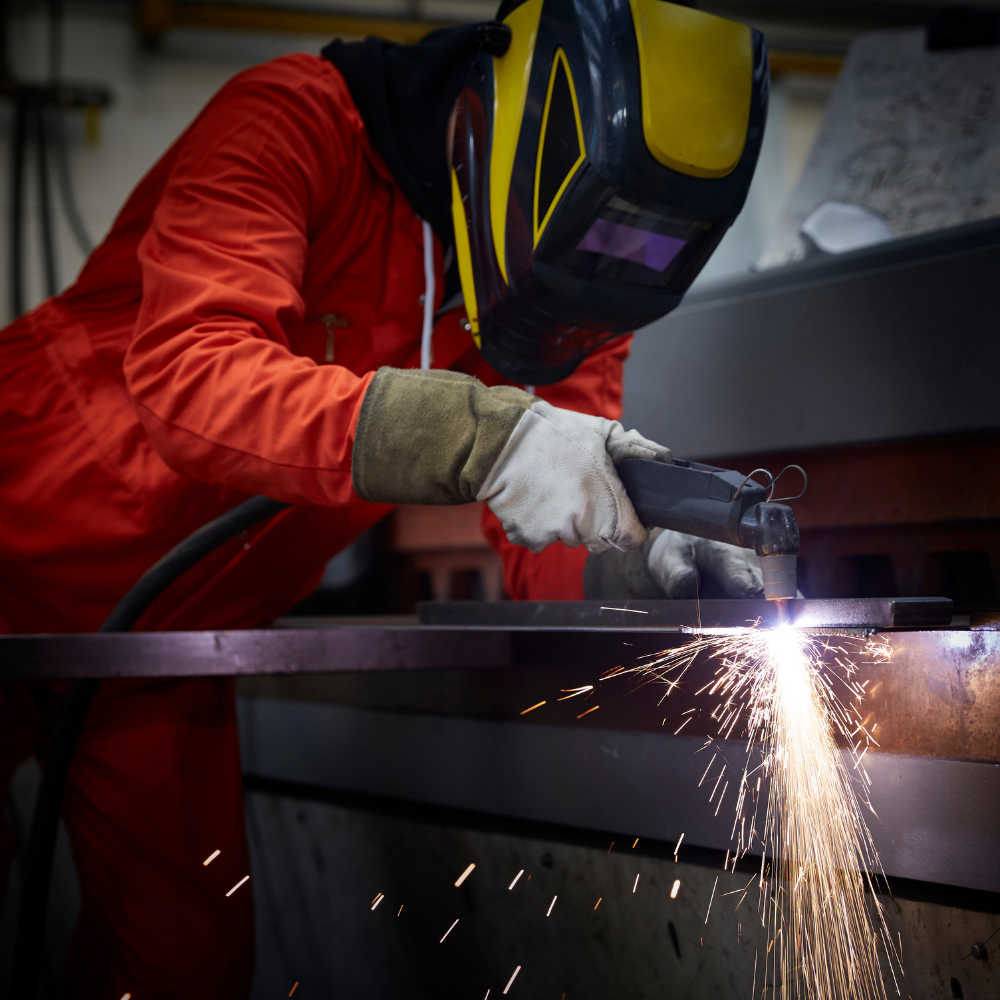

Cutting
Forming Drilling / Machining
Grinding
Testing
Frequently Asked Questions About S355JR Steel Plates
S355JR is a low carbon, high strength structural steel plate grade under EN 10025-2 standard. It offers excellent weldability, impact resistance at sub-zero temperatures, and is ideal for structural fabrication, bridges, offshore structures, and heavy machinery.
S355JR plates are available in thicknesses ranging from 6 mm to 300 mm and widths up to 3500 mm. Lengths can be customized between 3000 mm to 12000 mm as per client requirements.
S355JR plates are produced according to the EN 10025-2 standard for hot-rolled structural steel products. It meets European and international quality benchmarks for mechanical and chemical properties.
The weight of an S355JR steel plate is calculated using the formula: Weight (kg) = Thickness (mm) × Width (mm) × Length (mm) × 7.85 ÷ 1,000,000. This factor (7.85) is the standard density of carbon steel in kg/m³.
Prices depend on thickness & quantity, contact for best rate.
